PYROBOND 4 GL: CYLINDRICAL FLAME TREATMENT

PYROBOND 4 GL: OPTIMIZE ADHESION ON CYLINDRICAL PRODUCTS WITH THIS PYROSIL FLAME TREATMENT SYSTEM

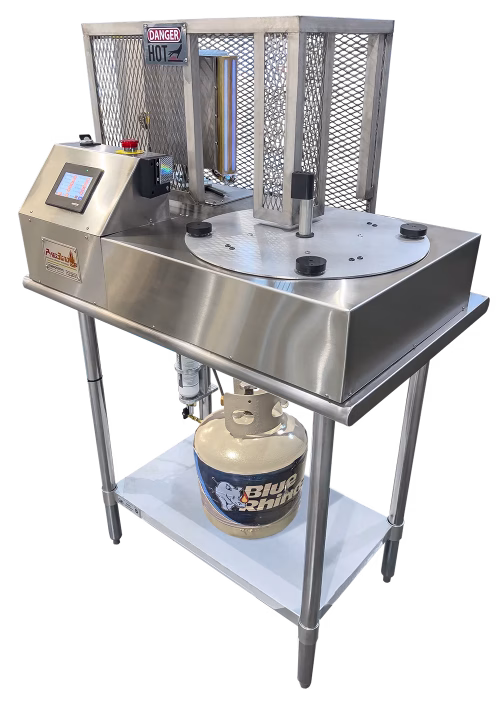

This Pyrosil flame treatment unit is designed for the rapid application of flame and Pyrosil to drinkware and other cylindrical objects. The electromechanical carousel does not require compressed air, making the unit portable and small enough for tight manufacturing environments.

With 4 stations, each is adjustable to account for varying substrate sizes and shapes. The burner manifold is easily adjustable to match the curvature of tapered objects as well, resulting in an even application of both flame and Pyrosil. Three independently controlled burners adjust to accommodate short, medium, and tall substrates to prevent waste.

The unit comes standard with a stainless steel shell and a stainless steel table. The table puts the unit at an ideal working height of 40″ for continuous operation. The shelf on the table provides easy access to the Propane and Pyrosil canisters well as self-containment.

Pyrobond pyrosil logo
Pyrobond Pyrosil Flame Treatment System Glass
Get Adhesion with Pyrobond Pyrosil Flame Treatment on Glass

KEY FEATURES OF THE FLAME TREATMENT SYSTEM

Multi-Station
Pyrosil Flame treatment

Two Burner System is
Perfect for Glass Treatment

No Waste with Automatic
Blank Detection

IDS Tooling Makes for Quick
Changeovers & Setups

Let's discuss achieving the best adhesion with pyrobond!
  • This field is for validation purposes and should be left unchanged.

pre-treatment capabilities

Water bottle printing and tumbler printing

PYROBOND 4 GL / PYROSIL FLAME TREATMENT SYSTEM SPECIFICATIONS

4 Station CarouselAdjustable stations to many substrates sizes and shapes
Pyrosil Canister Capacity600mL
Max Pretreatment HeightUp to 7″ pretreatment area!
Standard Substrate Size

Diameter: 2.0″ to 5.0″ with standard base
Up to 12″ tall substrates with standard construction

Interface4″ Color HMI
Environment

Temperature: 18° to 27°C (65° to 80° F)
Humidity: 40-70% (Recommended)
Dust: Equivalent to normal office level

Dimensions (W x D x H)

Table: 36″ x 24″ x 34″
Flame Unit (On top of table): 34″ x 22″ x 6″
(Protective cage extends to 21″ overall height)

WeightApprox. 50 lbs.
Power Requirements110 Volts AC, 5A; 24 Volt and 5 Volt DC for controls and motors
