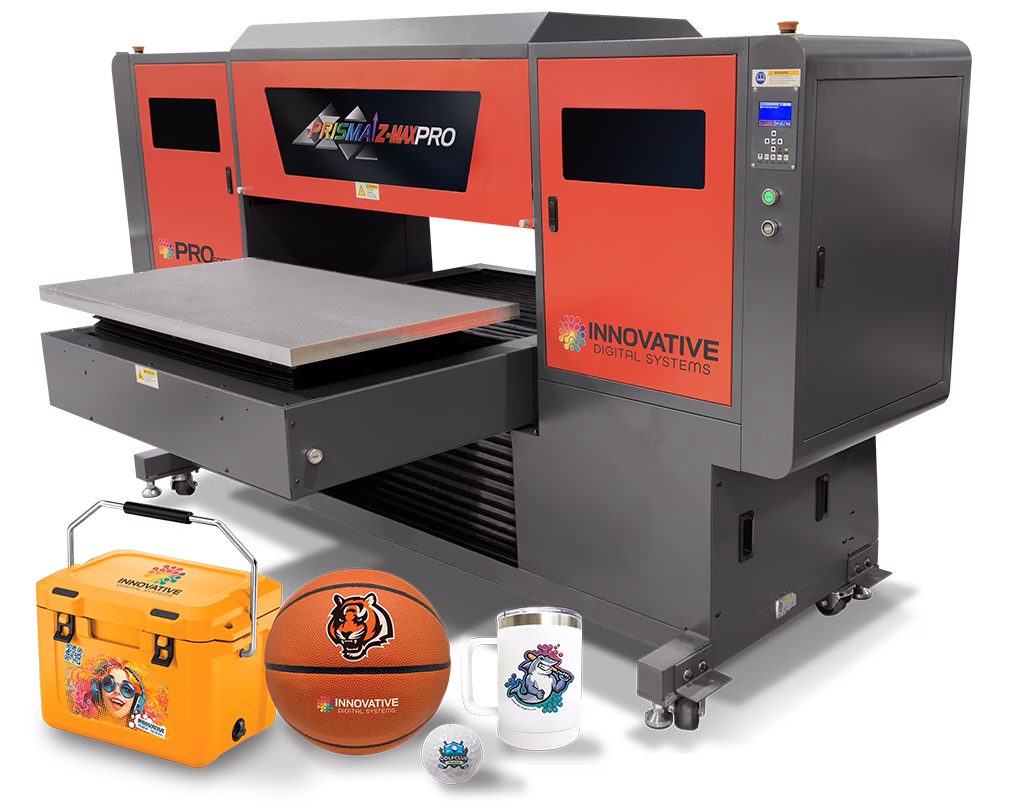

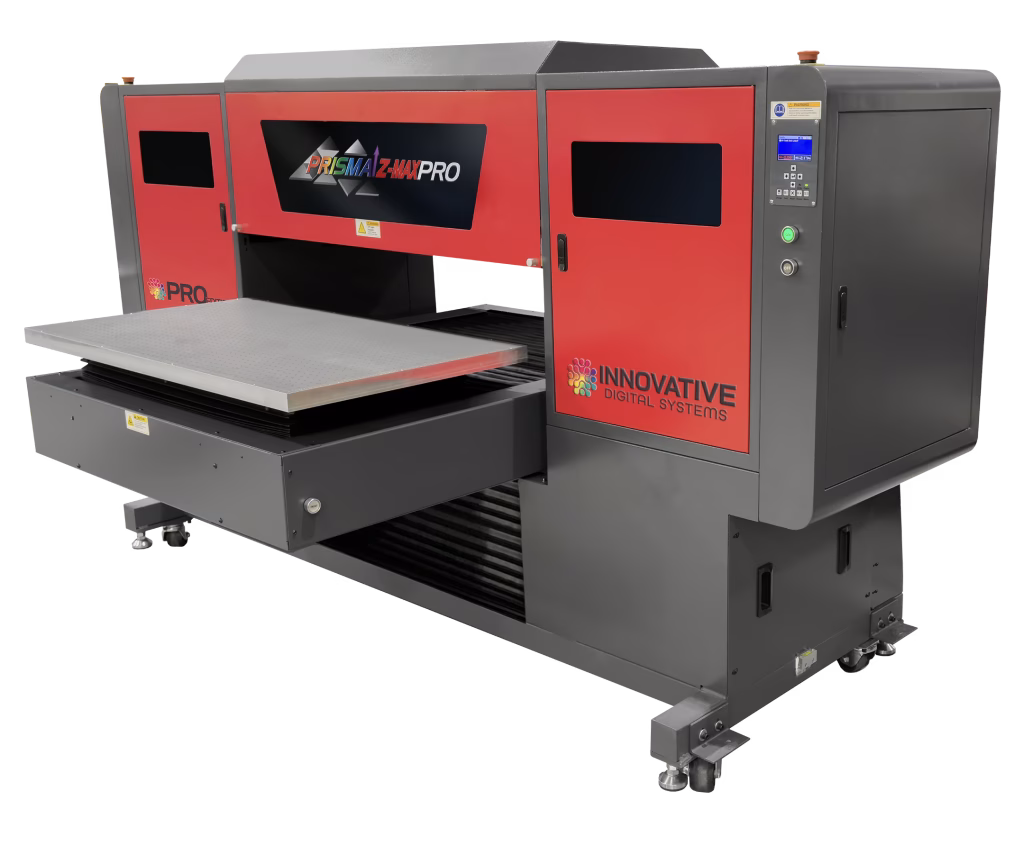

UV FLATBED PRINTER: PRISMA & PRISMA Z-MAX

PRISMA & PRISMA Z-MAX: UV FLATBED PRINTERS BUILT FOR PRODUCTION

With the PRISMA Z-Max UV flatbed printer, you’ll see that the range and versatility of UV printing has increased…big time.

In addition to printing flat items like signage and promo products, print large items like coolers without removing the lids and achieve proper adhesion on difficult materials like polypropylene among others.

Plus, when we say it’s fast, we aren’t talking about pie in the sky draft speeds when it comes to production. Simply put, the machine is fast.
UV flatbed printer big on capability

PRISMA Z-Max KEY FEATURES

BIG
43” x 24” Print Area

FAST
Built for Production

TALL
19.7” Z-Height

PRINTS
W+CMYK+VARNISH

Contact Us Today TO DISCUSS UV FLATBED PRINTERS!
  • This field is for validation purposes and should be left unchanged.

Highlight Videos

UV FLATBED PRINTER capabilities

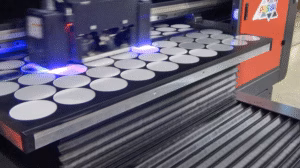

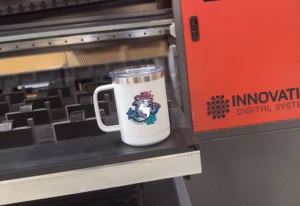

Uv flatbed printer for promo items
Big UV printer for Coolers
uv flatbed PRISM printer

Prisma & Prisma Z-Max Technical Specifications

Print SystemDOD piezo electric grayscale print heads, automatic voltage & temperature control.
Maximum Print Resolution1200 x 900 DPI
InkUV-LED curable Primer + W + CMYK + Varnish(Clearcoat). All inks are Prop65 compliant.
Ink Capacity1.5 Liter per color
Ink SystemAutomatic Ink Supply system, Active negative pressure system.
Interface / RIP SoftwareGigabit Ethernet, Color LCD Display Panel / ColorPRINT Bottle RIP, PCS
EnvironmentTemperature: 16-28°C (61-82°F). Humidity: 40-70% (Recommended)
Altitude: Up to 1609m (5280ft)
Power RequirementsSingle Phase 220V (50/60Hz, AC); 5 Amps; 1100W
 PrismaPrisma Z-Max
Table & Max Printing Zone Size110mm x 610mm (43.3″ W x 24.0″ D)110mm x 610mm (43.3″ W x 24.0″ D)
Max Media Thickness150mm (5.9″), Up to 20kg (44lb)500mm (19.7″), Up to 20kg (44lb)
Floor Dimensions2651mm x 1474mm x 1705mm
(104.7″ W x 58.0″ D x 67.1″ H)
2651mm x 1474mm x 1705mm
(104.7″ W x 58.0″ D x 67.1″ H)

CALL US TODAY!

Do you have questions about the PRISMA UV flatbed printer?
Our print experts can answer your questions relating to technical information or your custom requirements.

704-628-7679 Download Brochure
