Room for 4 × 8-foot boards
Print on a full 4 × 8-foot board or arrange multiple smaller pieces within the 2,500 × 1,300 mm print area.

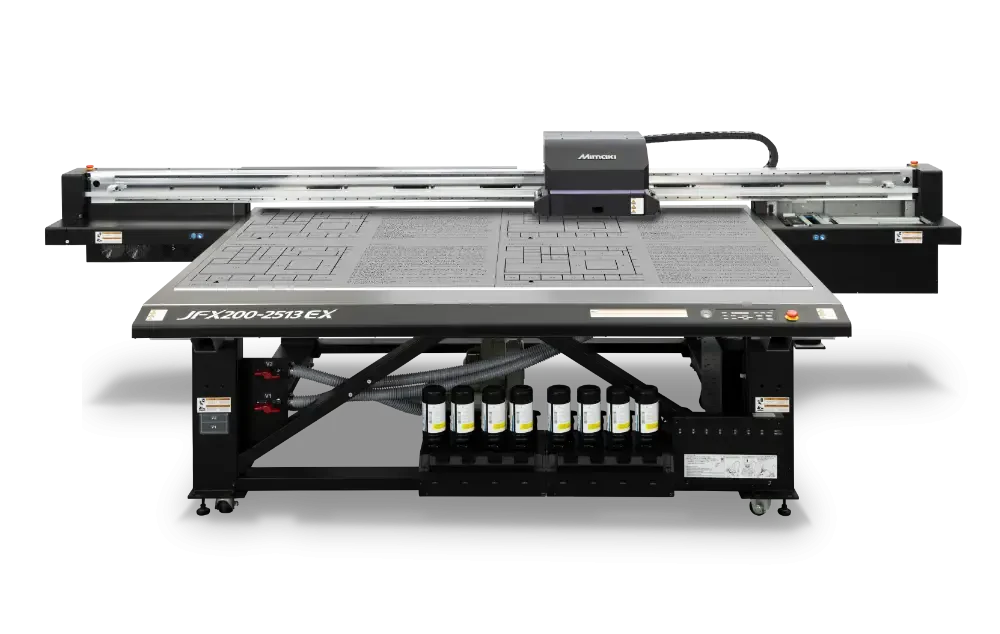

LARGE-FORMAT UV-LED FLATBED PRINTER
Expand your output. Add a new dimension.
Large-format UV printing with a 98.4 × 51.2-inch print area, support for media up to 50 mm (1.97 inches) thick, and 2.5D texture effects.
MSRP$79,844
Request printed samples
BUILT FOR LARGE-FORMAT APPLICATIONS
Produce full-size graphics, industrial applications, and dimensional finishes with an expanded three-printhead system.
Print on a full 4 × 8-foot board or arrange multiple smaller pieces within the 2,500 × 1,300 mm print area.
Build raised effects with layered UV ink. RasterLink’s 2.5D Texture Maker helps prepare stepped layers for dimensional graphics.
Reach up to 376.7 ft²/hour in 300 × 300 HQ, 4-pass draft mode. Actual throughput varies with the job and print conditions.
NCU detects missing nozzles and initiates cleaning. NRS can substitute working nozzles when cleaning does not resolve the issue.
EXPLORE THE APPLICATIONS
Signage • Packaging • Interior décor • Component marking • Membrane switch panels • Custom products. Manufacturer application examples; test your materials, inks, and any required pretreatment.
| Maximum print area | 2,500 × 1,300 mm / 98.4 × 51.2 in |
|---|---|
| Maximum media thickness | 50 mm / 1.97 in (nominal 2 in) |
| Maximum resolution | 1,200 × 1,200 dpi |
| Printheads | 3 on-demand piezo heads |
| Color + white draft speed | Up to 35 m²/hour / 376.7 ft²/hour |
| Maximum print / media area | 2,500 × 1,300 mm / 98.4 × 51.2 in |
|---|---|
| Maximum media thickness | 50 mm / 1.97 in (nominal 2 in) |
| Media load | Less than 50 kg/m² / approximately 10.2 lb/ft², non-concentrated load |
| Printheads | 3 on-demand piezo heads; 2 staggered and 1 in-line, per Mimaki USA |
| Resolution modes | 300 / 450 / 600 / 900 / 1,200 dpi; maximum 1,200 × 1,200 dpi |
| Minimum drop size | 5 pl; variable droplet sizes |
| Color + white draft mode | 35 m²/hour / 376.7 ft²/hour — 300 × 300 HQ, 4 passes, bidirectional |
| Color + white high-speed mode | 25 m²/hour / 269.1 ft²/hour — 300 × 450 HQ, 6 passes, bidirectional |
| Speed conditions | Factory print speeds exclude setup and pre/post-print operation. Throughput depends on artwork, coverage, ink, resolution, and RIP/network conditions. |
| Ink families | LH-100, LUS-120, LUS-150, LUS-211, LUS-350; PR-200 primer. Availability varies by configuration and region. |
| Available colors | CMYK; light cyan, light magenta, white, clear, and primer depending on ink type and configuration. PR-200 is not compatible with LUS-211 or LUS-350. |
| Ink supply | 1-liter bottles; 250 ml for LH-100, LUS-120, PR-200 only. Initial filling requires 1-liter bottles. |
| White-ink circulation | MCT; white ink only |
| Nozzle maintenance | Automatic NCU checking and cleaning; NRS nozzle substitution |
| Media hold-down | Vacuum with 2 zones in the X direction; foot-switch control |
| Curing system | UV-LED |
| Interface | USB 2.0, Ethernet |
| RIP software | RasterLink7 (current Mimaki USA listing) |
| Power supply | Single-phase AC 200–240 V, 50/60 Hz, less than 12 A |
| Power consumption | Less than 2.88 kVA; confirm separate vacuum-system electrical requirements |
| Humidity | 35–65% RH, non-condensing |
| Accuracy-maintained temperature | 20–25°C / 68–77°F |
| Assembled dimensions (W × D × H) | 4,400 × 2,450 × 1,250 mm / 173.2 × 96.4 × 49.2 in; confirm installation and service clearances with IDS |
Three on-demand piezo printheads support resolutions up to 1,200 × 1,200 dpi. Variable droplets start at 5 pl, while waveform control and MAPS help produce smooth gradients and reduce banding.
Color + white draft mode reaches 35 m²/hour (376.7 ft²/hour) at 300 × 300 HQ, 4 passes. High-speed mode reaches 25 m²/hour (269.1 ft²/hour) at 300 × 450 HQ, 6 passes. Figures exclude media setup and printer operation before or after printing.
Layered ink creates raised lettering, woodgrain-style textures, and dimensional artwork. Clear ink can add gloss effects. Available finishes depend on the ink set, artwork, media, and print settings.
Two vacuum zones and a foot switch help hold media in place while keeping hands free for loading. Gap pins measure media thickness; left and right media-jam sensors help protect the printheads.
Mimaki USA lists LH-100, LUS-120, LUS-150, LUS-211, LUS-350, and PR-200 primer. CMYK, light cyan, light magenta, white, clear, and primer availability varies by ink set. PR-200 is not compatible with LUS-211 or LUS-350. Confirm the configuration with IDS.
Mimaki Circulation Technology circulates white ink to reduce pigment settling. The printer accepts 1-liter bottles; 250 ml bottles are supported for LH-100, LUS-120, and PR-200. Initial ink filling requires 1-liter bottles.
USB 2.0 and Ethernet support the print workflow. RasterLink7 is listed in the current Mimaki USA specifications. MDL commands support integration with external automation equipment; system integration is application dependent.
REQUEST A QUOTE OR SAMPLE
Tell us about your materials, panel sizes, and printing goals. Our team will help you evaluate the JFX200-2513 EX for your application. Request a printed sample to explore the results.
