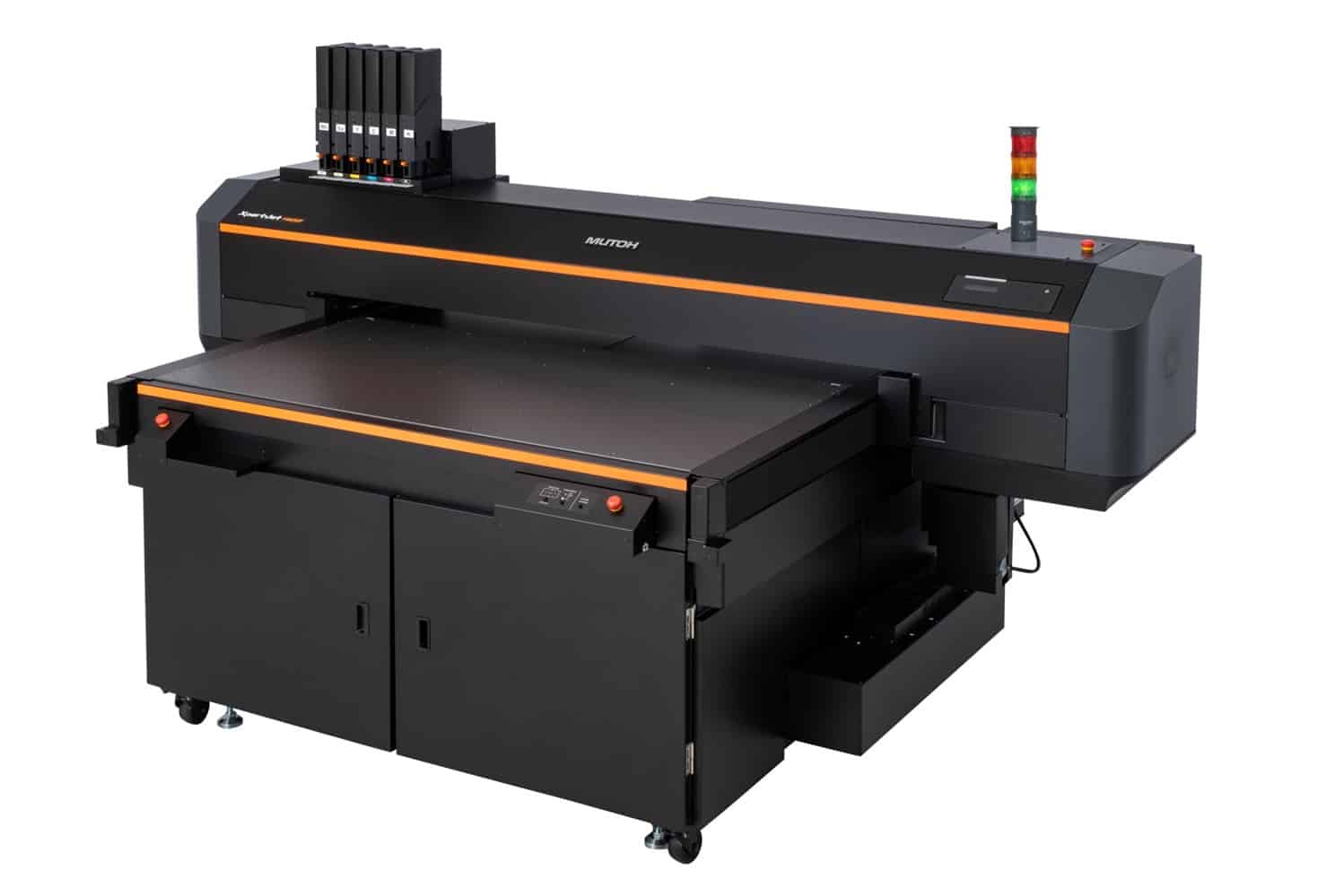

The Mutoh XpertJet 1462UF UV-LED flatbed printer with a moving gantry, features a large 55″ x 27″ printable surface area, two 4″ UV-LED lamps, two piezo drop on demand dual print heads in a staggered configuration, and will print on objects up to 5.9″ thick.
It also prints compliant ADA-compliant braille and 2.5D layered prints to create fine textured art to add value to any print job. Tie that in with MUTOH’s Local Dimming Control Technology, and you now have the ability to add glossy finishes easily in one pass.
With MUTOH’s “Made in Japan Quality” and proprietary features such as the Automatic Nozzle Detection Unit and the Area Select function, the MUTOH XPJ-1462UF is the ideal printer for any print shop looking for reliability, high quality, and fast speeds.
Everything from golf balls to cornhole boards can be printed, in full color, with the Mutoh XpertJet 1462UF UV printer. What will you print?
MUTOH XPERTJET 1462UF UV FLATBED PRINTER SPECIFICATIONS | ||
|---|---|---|
| Printhead | Two (2) on-demand Piezo head | |
| Print Resolution | Up to 1440 x 1440 dpi | |
| Ink | UV-LED Ink (UH21 ink) | |
| Ink Capacity | 800ml ink cartridge / 500ml bag (white ink only) | |
| Ink Set | 6 colors (C, M, Y, K, White, Varnish) | |
| Maximum Print Size | 55.9 in x 27.5 in | |
| Media | ||
| Thickness | 5.91 in | |
| Weight | 10.24 lbs. PSF | |
| Height Adjustment | Automatic | |
| Interface | Ethernet (10BASE-T / 100 BASE-TX) | |
| Power requirements | AC 100-120V± 10%, 50/60Hz ± 1Hz | |
| Operational environment | Temperature | 68-89.6°F |
| Humidity | 40-60%RH (non condensing) | |
| Dust | Equivalent to normal office level | |
| Weight | Approx. 1,100 lbs. | |
| Dimensions (W x D x H) | 109″ x 63″ x 52″ with gantry in front position | |
Do you have questions about the MUTOH XPERTJET 661UF?
Our sales team can answer your questions relating to technical information or your custom requirements.
