DIGI-Compact
The Bergstein DIGI-Compact is a high-speed, single pass industrial inkjet printer engineered for direct-to-product printing on plastics, glass, metal, aluminum, nitrile, and cardboard. Combining precision with flexibility, it supports manual or automated loading and integrates optional plasma, flame, Pyrosil, corona, ionization, or NIR pretreatment for superior adhesion.
Built on a stable single-frame design with a modular cassette system and advanced transport shuttles, it ensures consistent results at speeds up to 25 m/min. Configurable with up to 6 colors and 6 UV LED pinning units, the DIGI-Compact features intuitive HMI controls, remote diagnostics, and UV Mercury and/or LED curing—all in a compact, energy-efficient system that delivers high-quality output with minimal ink consumption and maintenance.
Engineered for speed, precision, and adaptability, the Bergstein DIGI-Compact combines advanced single pass technology with a modular design to deliver reliable, high-quality direct-to-object printing. From manual loading to full automation, it offers the flexibility and performance demanded by modern industrial printing environments.
• High-Speed Single Pass Printing – Achieve production speeds up to 25 meters per minute with consistent, high-resolution output.
• Multi-Material Versatility – Print directly on plastics, glass, metal, aluminum, nitrile, and cardboard with exceptional adhesion.
• Flexible Operation Modes – Supports manual loading or robotic automation using pick-and-place systems.
• Integrated Pretreatment Options – Optional plasma, flame, Pyrosil, corona, ionization, or NIR systems enhance surface adhesion.
• Modular Cassette System – Easily reconfigure or expand functionality for evolving production needs.
• Advanced Transport System – Precision-controlled shuttles ensure stable, repeatable printing with speed variation between steps.
• User-Friendly HMI Interface – Intuitive touchscreen control with role-based access, remote diagnostics, and multilingual support.
• Sustainable Efficiency – Up to 95% lower ink consumption, low noise level, and reduced environmental impact.
• Compact, All-in-One Construction – Stand-alone design integrates all components within a single solid frame for stability and ease of maintenance.
• UV Mercury and/or LED Curing – Dual curing options deliver fast, durable prints with energy-efficient performance.
- High-Speed Single Pass Printing
- Modular, All-in-One Design
- Advanced Pretreatment Options
Compact Industrial Design. Precision Single Pass Performance.
The Bergstein DIGI-Compact delivers high-speed, single pass UV printing with modular construction, advanced transport control, and integrated automation options — engineered for consistent, repeatable results across diverse materials and production environments.
High-Speed Single Pass Output
Modular, Scalable Construction
Direct-to-Object Versatility
Automated Loading Integration

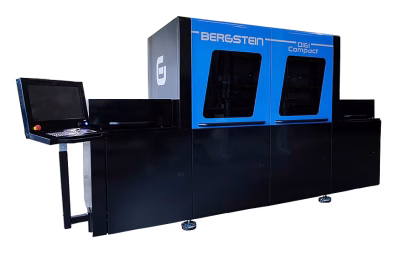

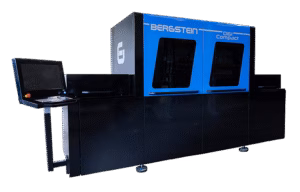

Bergstein DIGI-Compact
Max Full Color Resolution
360 dpi per color
Max Print Width
70mm
(up to 200mm by special order)
Print Speed
82 ft/min
Features
High-Speed Single Pass Printing
Modular Cassette System Design
Advanced Transport System Control
UV Mercury and/or LED Curing Tech
User-Friendly Touchscreen Interface
Up to 95 Percent Lower Ink Use
See the DIGI-Compact in Action
Contact us for printed samples!
The best way to truly see the power of this machine is to feel a sample in your hand.
Fill out this form to receive your sample or to inquire about this machine — an IDS rep will reach out to you shortly!
Bergstein DIGI-Compact Specifications |
||
|---|---|---|
| Print System | Single Pass Industrial UV Inkjet Printer | |
| Print Resolution | 360 DPI (dots per inch) | |
| Ink Technology | UV Mercury and/or UV LED Curing Included | |
| Ink Colors | Up to 6 Colors (Depending on Configuration) | |
| Max Print Width | 70 mm (2.75 inches) | |
| Print Speed | Up to 25 m/min (≈ 82 ft/min) | |
| Material Compatibility | Plastics, Glass, Metal, Aluminum, Nitrile, Cardboard | |
| Pretreatment Options | Plasma, Flame, Pyrosil, Corona, Ionization, or NIR (Optional) | |
| Operation Modes | Manual Loading or Pick-and-Place / Robot Automation (Optional) | |
| Transport System | Integrated High-End Shuttle System with Variable Speed Control | |
| HMI Interface | Touchscreen Control with Role-Based Access, Remote Diagnostics, and Multilingual Support | |
| Connectivity | OPC UA and TCP/IP Connections for Automation Integration | |
| Carrier Capacity | 120 – 175 Carriers per Hour (Depending on Layout and Speed) | |
| Max Product Height | 200 mm (7.87 inches) | |
| Max Carrier Size | 600 mm (L) × 200 mm (W) | |
| Power Requirements | 3 × 400 V + N + Pe | |
| Air Connection | 6 bar | |
| Printer Dimensions (L × W × H) | 3200 × 1800 × 2420 mm (Approx.) | |
| Dimensions with Open Doors | 3200 × 1800 × 2700 mm (Approx.) | |
| Weight | Approx. 2 000 – 4 500 kg (Depending on Configuration) | |
| Environmental Conditions | Energy Efficient | Low Noise Level | Reduced Environmental Impact | 95 % Lower Ink Consumption | |
