Ricoh Gen 6 printheads
Detailed UV printing with precise registration and vibrant color.

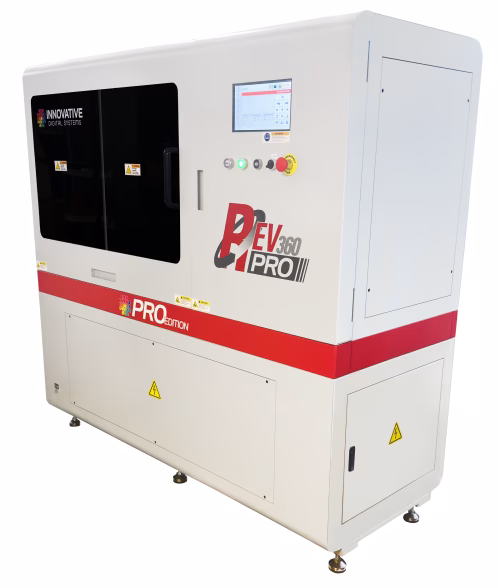

CYLINDRICAL UV INKJET PRINTER
High-speed printing. Exceptional detail.
High-gap UV printing for bottles, drinkware, and cylindrical or tapered products.
Request printed samples
BUILT FOR YOUR PRODUCTION
Advanced printing technology. Smarter setup. More application flexibility.
Detailed UV printing with precise registration and vibrant color.
Print on curved, textured, and embossed surfaces.
Automatic alignment for tapered or irregular objects.
An available configuration for challenging substrates.
SEE THE POSSIBILITIES
Bottles • Cups • Tubes • Cans • Cylindrical • Tapered Products
| Printhead system | Ricoh Gen 6 |
|---|---|
| Maximum resolution | 1200 × 900 DPI |
| Maximum print length | 300 mm / 11.8 in. |

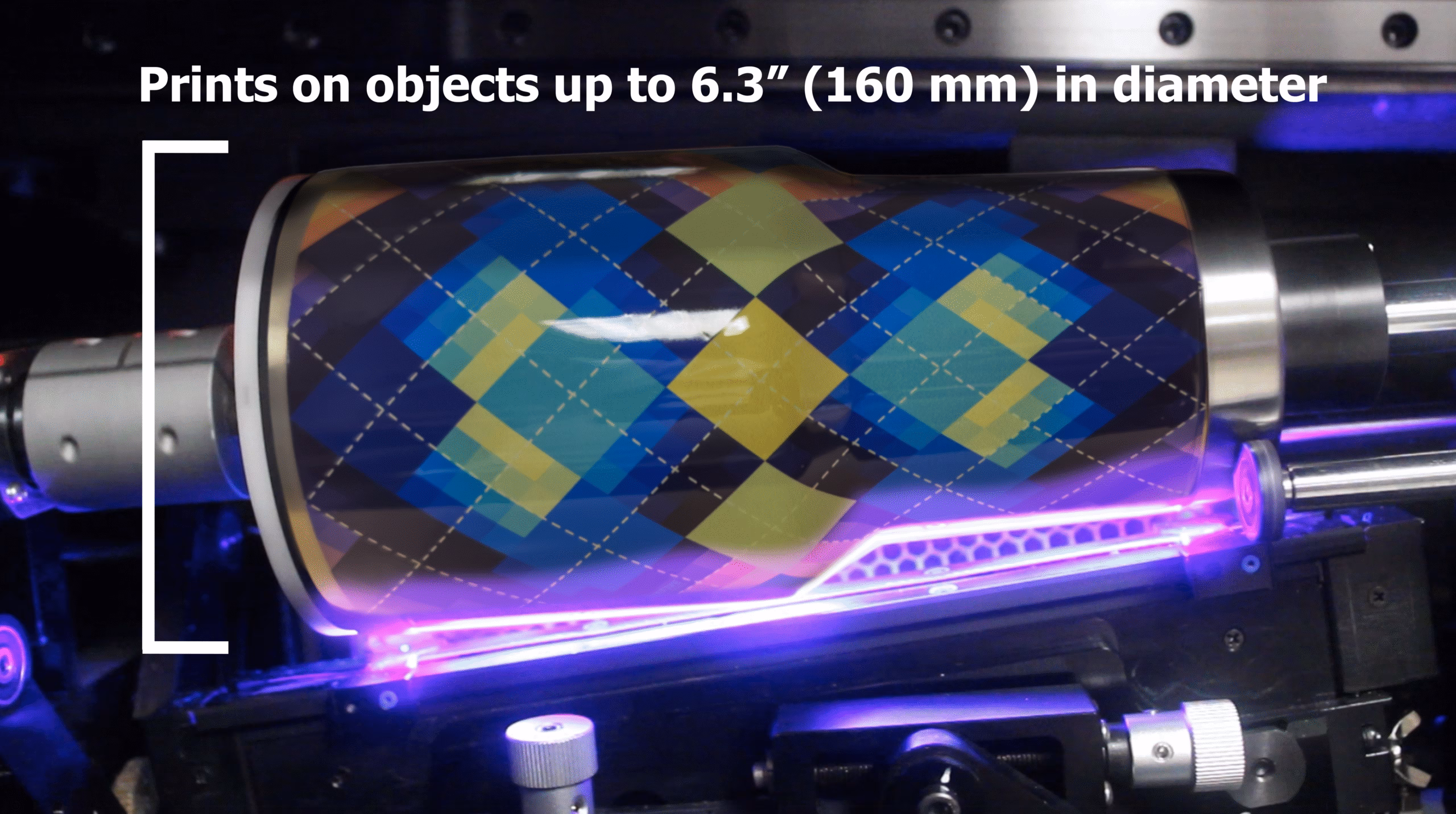

| Substrate diameter | 40–160 mm / 1.57–6.3 in. |
| Ink configuration | P + WW + CMYK + Varnish |
| Print system | Ricoh Gen 6 print heads. Automatic voltage and temperature control. 8W UV lamp. |
|---|---|
| Maximum resolution | 1200 × 900 DPI |
| Ink | UV-curable inks · P+WW+CMYK+V. All inks are Prop65 compliant. |
| Ink capacity & system | 1L main ink tank for each color. Automatic ink supply system. Active negative-pressure system. |
| Maximum print size | 300 mm length (11.8 in.) |
| Standard substrate size | Diameter: 40–160 mm (1.57–6.3 in.) Length: 330 mm (13 in.) |
| Interface / RIP software | NuviPRINT Bottle RIP software, 10-inch color LCD touch screen, Printer Control Software (PCS). |
| Environment | Temperature: 16–28°C (61–82°F) Humidity: 40–70% (recommended) Altitude: up to 1,000 m (3,281 ft) |
| Floor dimensions | 1730 × 700 × 1958 mm (68.1 × 27.6 × 77.1 in.) |
| Electrical | 230 V ±10% VAC single phase 50/60 Hz |
| Compressed air | 85–100 PSI |

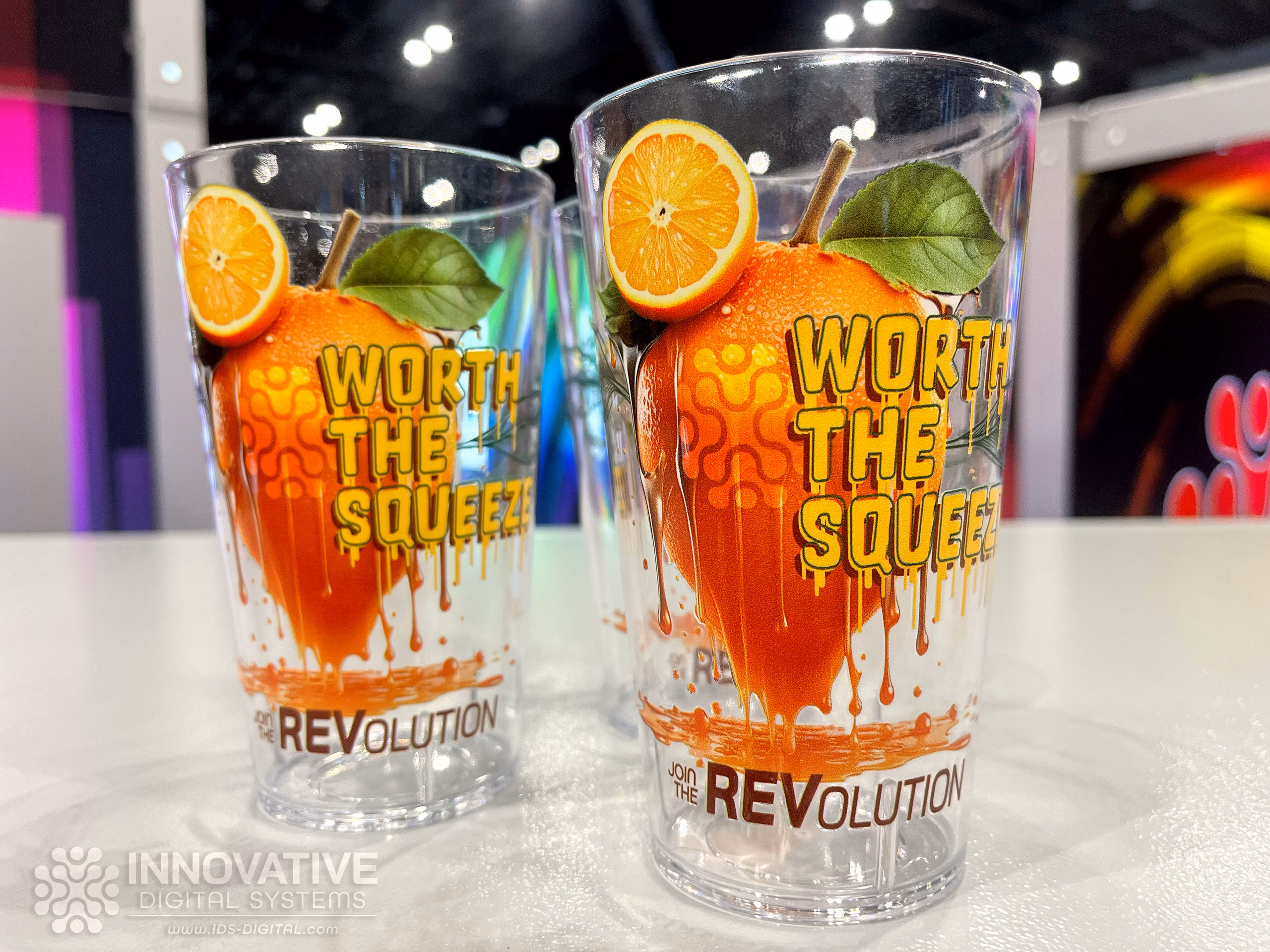

Prints a standard pint glass in about 25 seconds — nearly twice as fast as the previous Revolution 360° T v2.3.
Supports barcodes, QR codes, text, numbers, graphics, dates, times, serial numbers, and photo images. Template printing supports rapid, high-volume output.
Automatic ink supply and an active negative-pressure system maintain consistent ink flow to the printheads and stable pressure levels.
NuviPRINT Bottle RIP software, a 10-inch color LCD touch screen, and Printer Control Software (PCS) support job management and printer control.
Embossed printing, double-sided decoration, and multiple registration of colors and varnishes for sharp, clear edges.
The maximum print length is 300 mm (11.8 in.), increased from 240 mm on the previous platform.
Watch the product demonstration from IDS.
