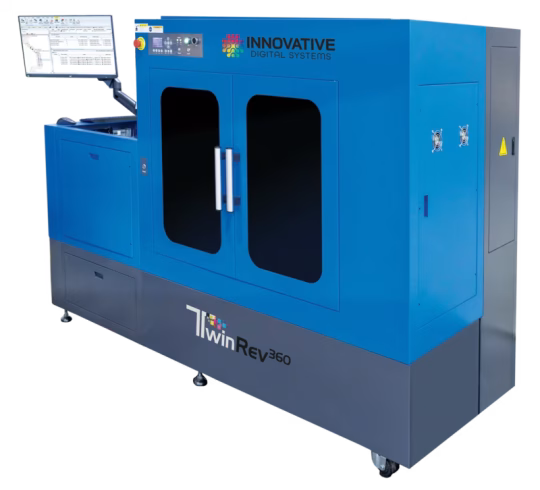

UV CYLINDRICAL PRINTER FOR DECORATING TWO ITEMS AT ONCE
The TwinRev 360 is the newest addition to our popular UV cylindrical printer line. With the ability to simultaneously print two cylindrical or tapered items, the unit was designed to increase production over standard one-up rotary printers.
Maximum part length and diameters are just a couple of the features that allow the TwinRev360 to stand out from other options in the market. The printer can accept products up to 14.1” in length with diameters all the way up to 5.1”.
Operators can also increase their capabilities by enabling a longer print width (requires upgrade to 330mm lamps) or add two printheads to accommodate light cyan/light magenta or jettable primer configurations.
KEY FEATURES OF THE TWINREV 360 CYLINDRICAL PRINTER
"Two are Better Than One" Comparably Priced to Some Single Vessel Units
Print Bigger & Faster Max Diameter: 5.1" Max Item Length: 14.1"
RIP Computer, Monitor, & Mount Included
Prints Tapered
& Conical Drinkware
TWINREV PRO NOW AVAILABLE: With the introduction of our newest UV rotary printer, dual rotary printing is now FASTER than ever! Complete with Ricoh Gen 6 heads, the TwinRev PRO prints straight-walled and tapered drinkware items up to 14.1″ in length.
DOD piezo electric grayscale printheads, automatic voltage & temperature control Ricoh Gen 4. A total of 8 printheads come standard, 2 additional are optional.
Maximum Resolution
1200 x 900 DPI
Lamps
Two (2) 220mm LED 6 watt lamps come standard. Printer can be upgraded to include two (2) 330mm LED 6 watt lamps.
Ink System
UV curable inks (CMYK, White, & Varnish). 1.5L container for each color. Automatic ink supply system. Active negative pressure system.
Maximum Print Size
8.6” (220mm) length or 13” (330mm) length with lamp upgrade
Standard Substrate Size
Diameter: 1.57” and 5.1” (40mm to 130mm) Length: Up to 14.1” (360mm)
Interface/ RIP Software
ColorPRINT RIP software; Printer Control Software (PCS) Color LCD Control Panel
Floor Dimensions
41.3” x 87.4” x 74.5” (1050mm x 2220mm x 1894mm) Approx. Weight: 1,322 lbs (600kg)
Environment
Temperature: 61-82°F (16-28°C) Humidity: 40-70% (Recommended) Altitude: Up to 5280ft (1609m)
Electrical
Printer: Single phase 220 V±10% (50/60 Hz, AC); 15 A; 3300 W CPU and Monitor: Standard 110V, 10A
Air
25 PSI Shop Air
The following optional ink configurations are available at an additional cost and delivery time: W + CMYK + LcLm + Varnish (Clearcoat). This option provides photorealistic print quality with an expanded color gamut. Primer + W + CMYK + Varnish (Clearcoat). This option provides the ability to jet primer to the substrate prior to full-color printing
TwinRev 360 inks, supplies, and their appropriate Prop 65 test reports can be found here.
