For years, direct-to-object UV printing has been limited by one major constraint: curved surfaces.
Traditional UV flatbed printers simply were not designed to maintain precise ink placement as a product’s surface rapidly falls away from the printhead. The result? Small graphics, limited decoration areas, calibration issues, and major restrictions when printing on spherical products like golf balls, baseballs, and softballs.
That limitation has officially changed.
The Prisma Z-Max Pro from Innovative Digital Systems (IDS) is pushing the boundaries of what’s possible in high-gap UV printing, enabling manufacturers to print dramatically larger graphics on highly curved objects with exceptional detail, registration accuracy, and repeatability. Built around advanced high-gap / high-throw UV printing technology, the Prisma Z-Max Pro transforms UV flatbed printing from a flat-surface process into a scalable platform for advanced dimensional product decoration.
Printing Larger Graphics on Sports Balls Than Ever Before
Sports balls represent some of the most difficult geometries in industrial decoration, due to the rapid change in surface height. Processes like:
- Printing on golf balls
- Printing on baseballs
- Printing on softballs
- Printing on basketballs
- Printing on soccer balls
- Printing on volleyballs
all feature rapidly changing surface heights and extreme curvature in multiple directions.
Conventional UV flatbed printers are typically restricted to very small flat-facing graphics because the printhead clearance simply cannot compensate for the curvature of these products.
The Prisma Z-Max Pro changes that with proprietary high-gap printing / high-throw printing architecture capable of maintaining accurate droplet placement at significantly greater printhead-to-surface distances — measuring distances of up to 15mm. This allows decorators to print substantially farther around curved surfaces while maintaining sharp detail and production-level image quality.
High-gap printing is made possible by the confluence of printhead technology advancements, ink solution developments, tailored machine designs, and world-class engineering as well as machine driver software that maximizes all of those elements through custom waveforms and digital artwork control.
The result is:
- Larger logos
- Expanded branding coverage
- More visually impactful graphics
- Greater printable surface area
- New opportunities for premium customization
From Golf Balls to Basketballs — One Industrial UV Platform
One of the most impressive aspects of the Prisma Z-Max Pro is its versatility.

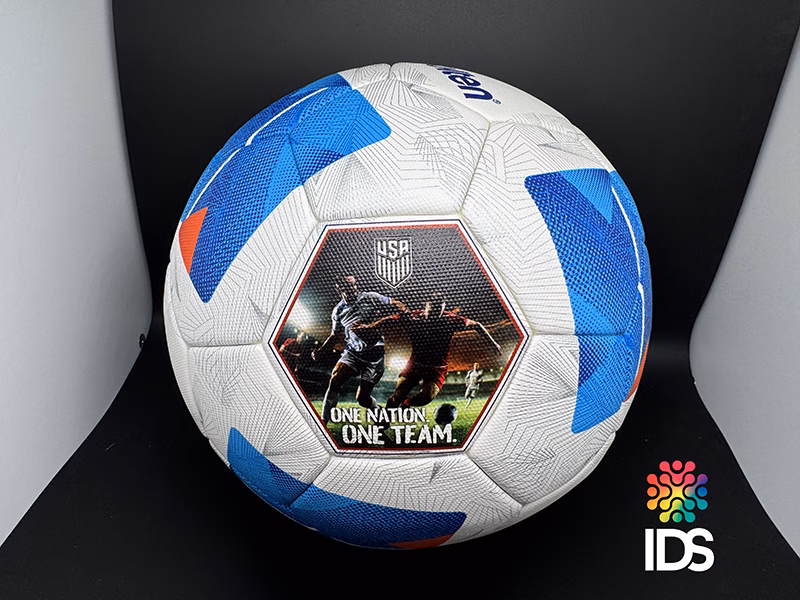

With an industry-leading 19.7” Z-axis clearance, the same industrial UV flatbed printer capable of printing small diameters like golf balls can also handle much larger spherical products like basketballs, footballs, soccer balls, and volleyballs — all on the same platform.
This dramatically expands the range of products manufacturers can decorate without changing equipment.
For sporting goods manufacturers, promotional product companies, and industrial decorators, this opens the door to entirely new product categories and customization opportunities.
Simultaneous Multi-Size Printing with Variable Artwork
The Prisma Z-Max Pro doesn’t just print curved objects better, allowing you to print multiple sizes, with multiple art files, all in a single print cycle — upgrading your production workflow entirely.

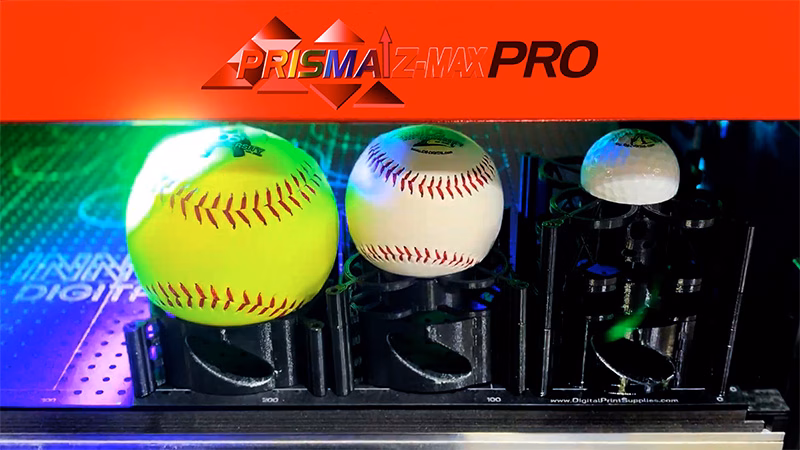

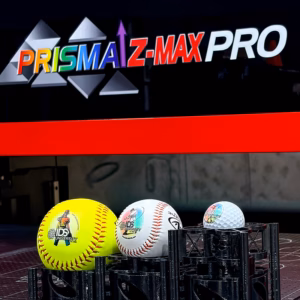

For example, this photo shows shows simultaneous decoration of:
- A softball
- A baseball
- A golf ball
all fixtured together on the same print bed and printed in a single production cycle. Each object receives completely independent variable artwork without mechanical changeover or separate setup stages.
This represents a major advancement in:
- Mixed-SKU production
- Short-run customization
- Variable data printing
- Manufacturing agility
- Production throughput
Traditional analog workflows and competing UV systems often require dedicated fixtures, separate setups, or isolated production runs for products of varying sizes. The Prisma Z-Max Pro consolidates these workflows into a single scalable manufacturing process.
Advanced Tooling & Fixturing for Complex Products

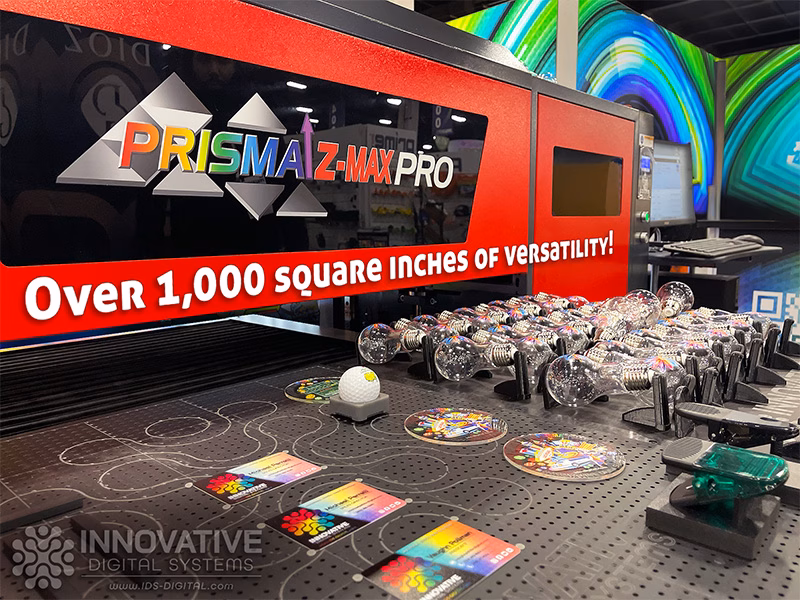

Supporting these capabilities is IDS’s modular Peg Board Fixturing System, enabling rapid fixture customization for spherical and irregular products while dramatically reducing setup and changeover time.
Additionally, stackable tooling architecture enables simultaneous multi-part production while preserving precise registration and repeatability – letting you get 3X more production done in a single print cycle.
Together, these technologies allow manufacturers to:
- Increase throughput
- Reduce labor
- Improve production flexibility
- Simplify setup
- Maximize ROI
Zero-Primer Adhesion on Difficult Substrates
Another key component of this fully-optimized work flow is IDS’s advanced Semi-Flex inkset, achieving strong adhesion on difficult-to-print curved substrates with zero primer application. In many cases, only a simple alcohol wipe is required prior to printing for cleaning and static reduction.
Eliminating primer and pretreatment steps:
- Simplifies workflow
- Reduces labor
- Improves efficiency
- Reduces consumable costs
- Speeds production turnaround
The Future of High-Gap UV Printing
The Prisma Z-Max Pro represents more than a new industrial UV flatbed printer — it represents a fundamental shift in curved-surface digital decoration.
By combining:
- High-gap / high-throw UV printing
- Extended Z-axis architecture
- Advanced Ricoh Gen 6 printhead technology
- Variable artwork production
- Mixed-size simultaneous printing
- Modular fixturing
- Stackable tooling
IDS has created a true dimensional and spherical decoration platform capable of applications previously impractical or impossible with traditional UV flatbed technology.
For manufacturers looking to expand customization capability, increase throughput, reduce setup time, and unlock new premium decoration opportunities, high-gap UV printing is rapidly becoming the next big thing you must know about and fully utilize in order to remain competitive and relevant in the market.
