Detailed UV-LED printing
An on-demand piezo printhead and resolutions up to 1,800 dpi support fine text, lines, and smooth gradients.
BENCHTOP UV-LED FLATBED PRINTER
More room for your next application.
Direct-to-object printing with a 24.0 × 16.5-inch print area, vibrant ink options, and capacity for objects up to 9.8 inches thick.
MSRP$39,995
Request printed samples
BUILT FOR YOUR PRODUCTION
Decorate dimensional products with flexible ink choices and options for automated production.
An on-demand piezo printhead and resolutions up to 1,800 dpi support fine text, lines, and smooth gradients.
Accommodates media up to 250 mm (9.8 in.) thick and up to 20 kg (44.1 lb).
Choose rigid or flexible ink configurations, with white, clear, primer, and fluorescent options available.
Camera-based positioning and the 6042-compatible belt option can reduce manual alignment and handling.
SEE THE POSSIBILITIES

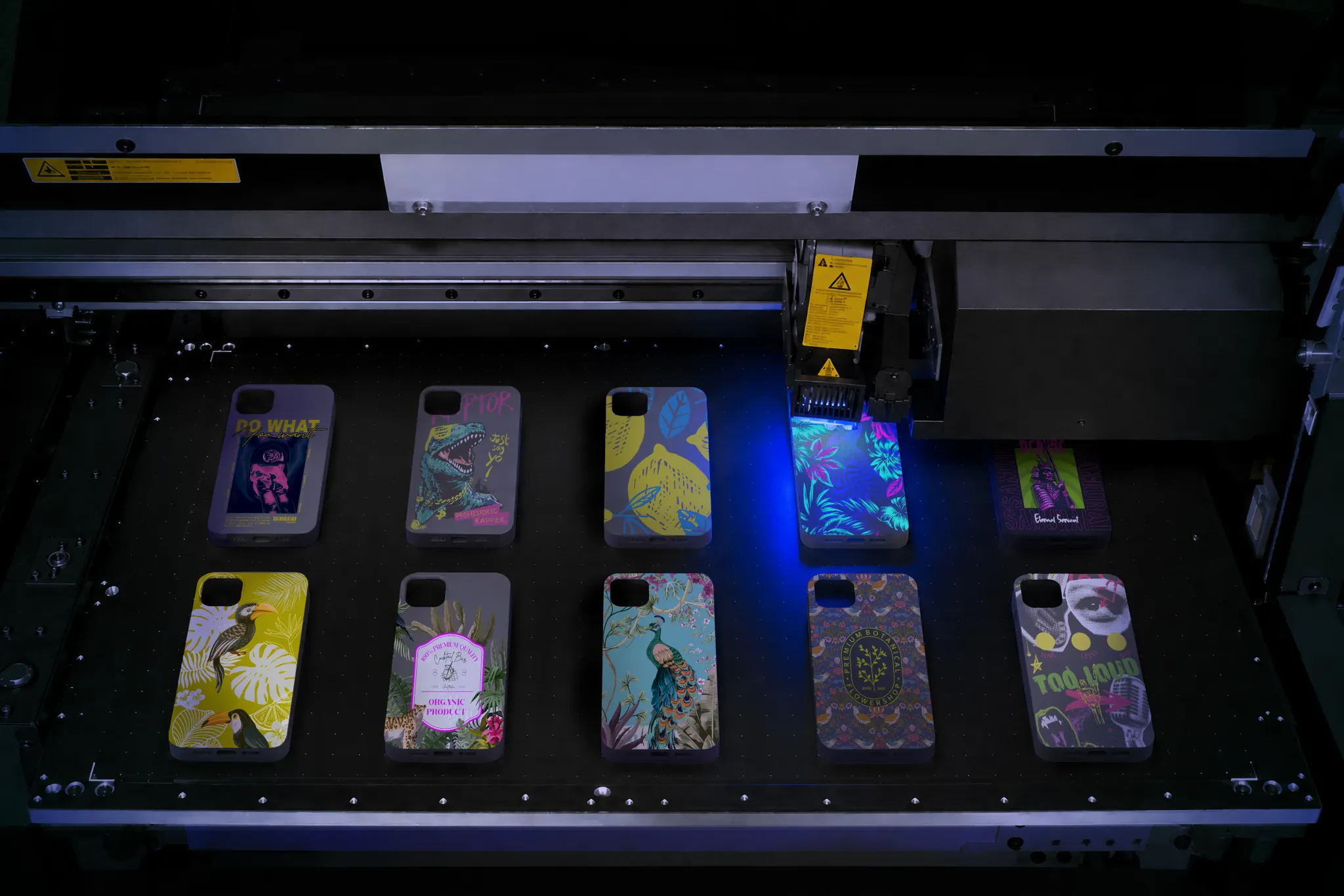

Phone cases • Promotional products • Personalized goods • Industrial applications
| Maximum print area | 610 × 420 mm / 24.0 × 16.5 in. |
|---|---|
| Maximum media thickness | 250 mm / 9.8 in. |
| Maximum media weight | 20 kg / 44.1 lb |
| Maximum resolution | 1,800 dpi |
| Printhead | On-demand piezo |

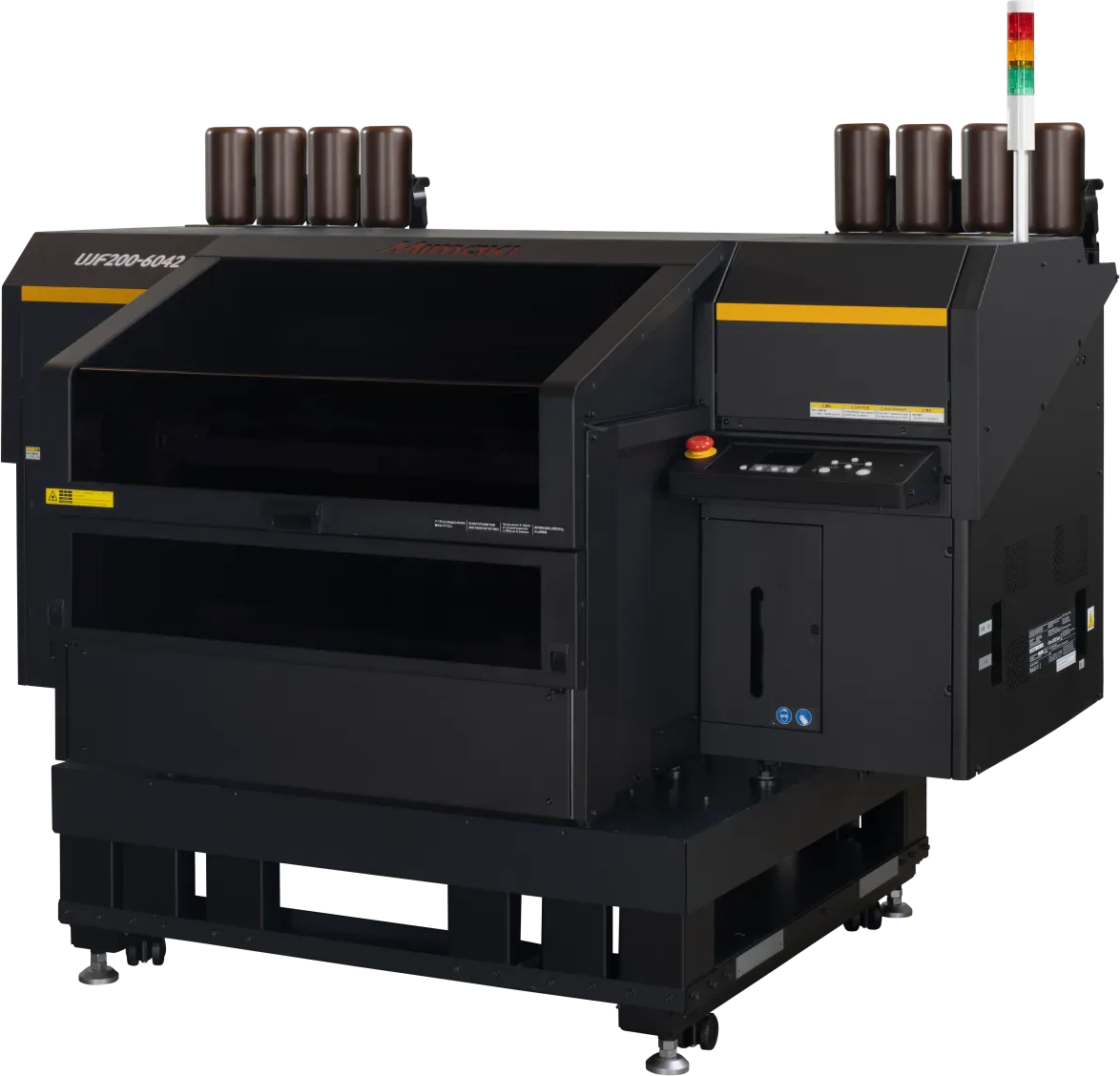

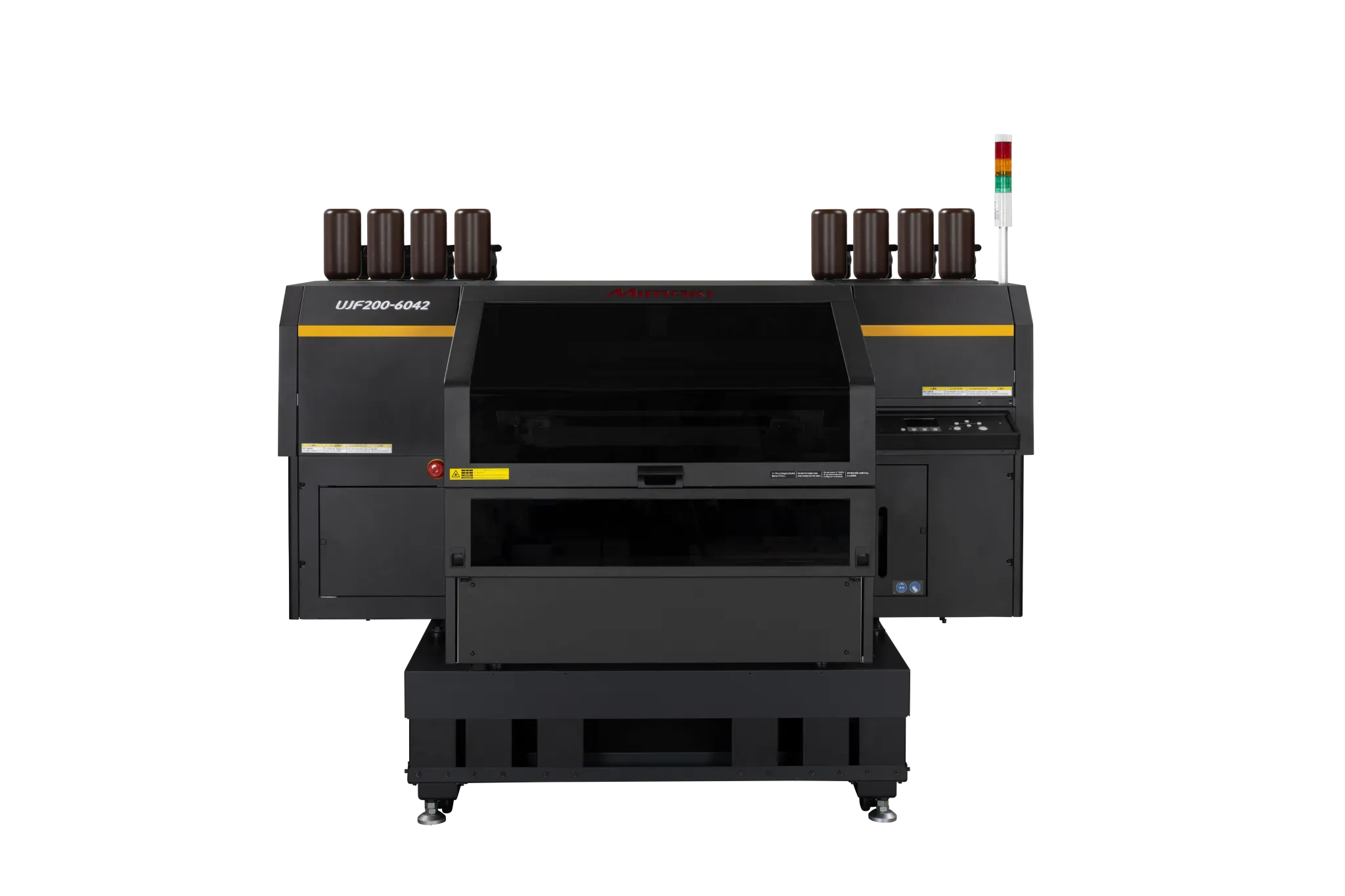

| Model | Mimaki UJF200-6042 |
|---|---|
| Printer type | UV-LED flatbed inkjet printer |
| Printhead | On-demand piezo |
| Print resolution | 600 / 900 / 1,200 / 1,800 dpi |
| Maximum print area | 610 × 420 mm / 24.0 × 16.5 in. |
| Maximum media thickness | 250 mm / 9.8 in. |
| Maximum media weight | 20 kg / 44.1 lb |
| Ink families | ELH-100 rigid UV ink; ELS-120 flexible UV ink; EFS-150 fluorescent ink; PR-200 primer. Configuration-dependent. |
| Available ink colors | ELH-100 / ELS-120: C, M, Y, K, Lc, Lm, W, Cl. EFS-150: fluorescent pink and yellow. Not all colors are installed together. |
| Ink containers | 1 L bottles; 250 ml bottles for ELH-100, ELS-120 and PR-200. EFS-150: 1 L. |
| Interface | Ethernet 1000BASE-T / USB 2.0 |
| RIP software | RasterLink8 |
| Power consumption | Maximum: 450 W; standard: 250 W; sleep: 4.5 W or less. |
| Operating environment | 20–30°C / 68–86°F; 35–65% RH, non-condensing. Recommended temperature: 20–25°C / 68–77°F. |
| Dimensions (W × D × H) | 1,680 × 1,166 × 798 mm / 66.1 × 45.9 × 31.4 in. Height excludes ink bottles and dedicated stand. |
| Printer weight | 187 kg / 412.3 lb |
ELH-100 rigid ink and ELS-120 flexible ink offer different properties for different applications. Test adhesion and suitability on your intended substrate.
EFS-150 fluorescent pink and yellow can be used with compatible ELH-100 or ELS-120 configurations. White, clear, light colors, and PR-200 primer depend on the selected ink setup.
The camera option detects substrate shape and position for image alignment. The belt option is available for the UJF200-6042 and can connect with production-line conveyors. These systems are optional.
Mimaki’s genuine RIP supports fluorescent printing, image alignment, and printer-to-printer color matching. Mimaki Remote Access supports remote machine operation.
Optional accessories for the UJF200-6042 include an installation stand, Ionizer Unit 60, exhaust fan unit, deodorizer, and compatible Kebab rotary accessories. Confirm the configuration for your application.
Tell us about your product, material, and printing goals. Our team will help determine the right printing solution for your needs. You can also request a printed sample to see the results firsthand.
