Automatic table height adjustment and includes vacuum table
Print Braille along with other matte and glossy textures

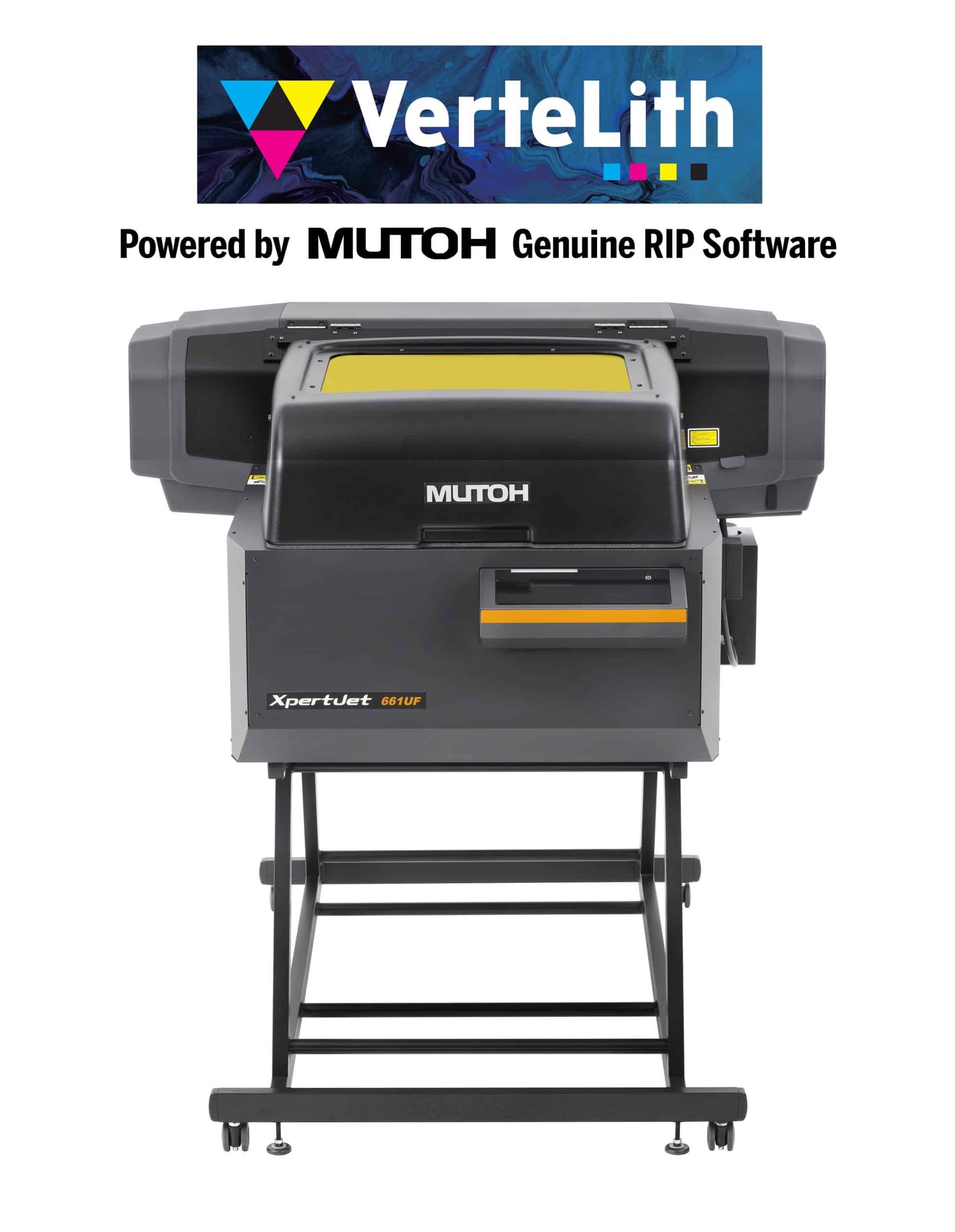

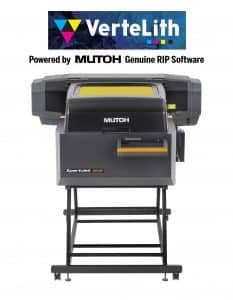

The Mutoh XpertJet 661UF UV-LED flatbed printer includes a larger printable surface area, updated touchscreen panel, improved LED lamp and more.
The XPJ-661UF is powered by MUTOH’s new genuine VerteLith™ RIP software, bundled with FlexiDESIGNER MUTOH Edition 21, a $2,199.00 value. VerteLith RIP optimizes all of the capabilities of the XPJ-661UF, increasing productivity and profitability.
The MUTOH XPJ-661UF allows for layered printing to create fine textured prints and Braille, all of which will instantly add value to any print. Tie that in with MUTOH’s Local Dimming Control Technology, and you now have the ability to add glossy finishes easily in one pass.
The MUTOH XPJ-661UF also includes the StartRight™ Kit, an advanced training tool designed to quickly get the printer up and running. It includes project application guides, lessons, video instruction, sample output, blanks and a sample JIG with inserts.
Automatic table height adjustment and includes vacuum table
Print Braille along with other matte and glossy textures
Compatible with the Mutoh rotary attachment for added versatility
VerteLith™ RIP software increases productivity and profitability
Mutoh XpertJet 661UF Specifications | ||
|---|---|---|
| Print System | On-demand piezo drive system | |
| Maximum Resolution | 1440 / 1080 / 720 dpi (Total 6 modes) | |
| Ink Type | UV-LED Ink (UH21 ink / US11 ink) | |
| Ink Set | 4 colors (C, M, Y, K) | 6 colors (C, M, Y, K, White, Varnish) | |
| Ink Capacity / System | 220ml ink cartridge (CMYK, White, Varnish) | No. of slots: 6 | |
| Set Media Size | 20.5 in (W) × 24.5 in (D) | Height: 0–5.91 in | Weight: 13.23 lbs | |
| Maximum Print Size | 19.02 in (W) × 23.39 in (D) | |
| Height Adjustment | Automatic | |
| Interface / RIP | Ethernet (10BASE-T / 100BASE-TX) VerteLith™ RIP bundled with FlexiDESIGNER MUTOH Edition 21 (a $2,199.00 value) | |
| Environment | Temperature: 68–89.6°F Humidity: 40–60% RH (non-condensing) | |
| Floor Dimensions / Weight | 46.77 in (W) × 64.06 in (D) × 23.78 in (H) (cover closed) 46.77 in (W) × 64.06 in (D) × 47.01 in (H) (front cover opened) Weight: 286.60 lbs | |
| Power | Requirements: AC 100–120V ±10%, 50/60Hz ±1Hz Consumption: Sleep Mode: 20W or less | Ready to Print: 40W or less | Operation: 300W or less | |
| Operation Noise | Standby: 49dB or less | Printing with vacuum table: 69dB or less | |
