Designed for handled objects
Decorate ceramic coffee mugs, handled travel tumblers, and powder-coated drinkware.

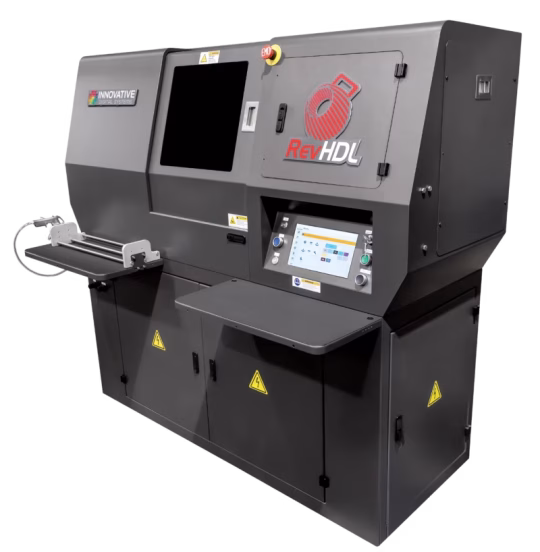

UV PRINTER FOR HANDLED DRINKWARE
Get a handle on your drinkware printing.
Direct-to-object UV printing for ceramic mugs, handled travel tumblers, and powder-coated drinkware, with up to 280°+ coverage depending on cup diameter.
Request printed samples
BUILT FOR HANDLED DRINKWARE
Purpose-built for handled products, with multicolor printing and flexible drinkware applications.
Decorate ceramic coffee mugs, handled travel tumblers, and powder-coated drinkware.
Print around handled drinkware, including tapered products. Printable coverage depends on cup diameter.

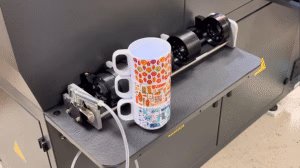

Stack up to four handled straight-walled objects for printing, within the machine’s size and handle-clearance limits.
UV-curable primer, white, CMYK, and varnish support vibrant decoration across suitable substrates.
SEE THE POSSIBILITIES
Ceramic mugs • Handled tumblers • Travel mugs • Powder-coated drinkware
| Printhead system | Ricoh Gen 4 |
|---|---|
| Maximum resolution | 900 × 1200 DPI |
| Maximum print length | 360 mm / 14.17 in |
| Mug diameter | 65–130 mm / 2.56–5.12 in |
| Print coverage | Up to 280°+, depending on cup diameter |
| Print system | Ricoh Gen 4 printheads; automatic voltage and temperature control |
|---|---|
| Maximum resolution | 900 × 1200 DPI |
| Ink configuration | UV-curable Primer + White + CMYK + Varnish (Clearcoat) |
| Ink supply | 1 liter per color; automatic ink supply and active negative pressure |
| Maximum print length (Y-axis) | 360 mm / 14.17 in |
| Mug diameter | 65–130 mm / 2.56–5.12 in |
| Handle clearance | Mug radius + handle width must fit within 102 mm / 4.01 in |
| Maximum substrate length | 360 mm / 14.17 in |
| Printable coverage | Up to 280°+, depending on cup diameter |
| Multi-object printing | Up to four handled straight-walled objects at a time |
| Interface & software | Gigabit Ethernet; ColorPRINT Bottle RIP; PCS6 |
| Environment | Temperature: 16–28°C (61–82°F) Recommended humidity: 40–70% Altitude: up to 1,000 m (3,281 ft) |
| Machine dimensions | 1,560 × 832 × 1,830 mm / 61.4 × 32.8 × 72 in |
| Approximate machine weight | 580 kg / 1,280 lb |
| Electrical | 220 V ±10%, 50/60 Hz Maximum current: 7.5 A Maximum power: 1,650 W |
| Compressed air | 85–100 PSI shop air |
Automatic printhead voltage and temperature control, with a maximum resolution of 900 × 1200 DPI.
The RevHDL supports handled straight-walled and tapered products. The four-object capacity applies to handled straight-walled objects.
Explore metal, glass, ceramic, plastic, and powder-coated products. Ask IDS to evaluate your substrate, fixture, and preparation requirements.
Watch the IDS RevHDL handled-mug printing demonstration.
REQUEST A QUOTE OR SAMPLE
Tell us about your drinkware, material, and printing goals. Our team will help you evaluate the RevHDL for your application. Request a printed sample to see the results firsthand.
